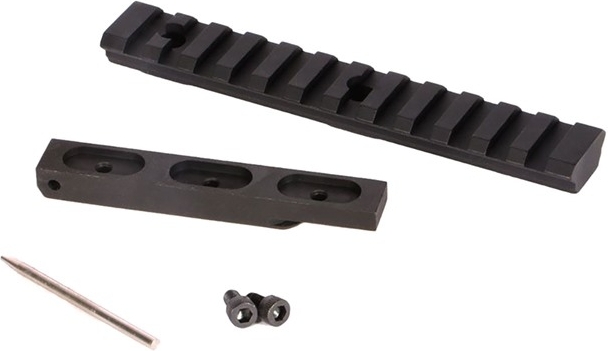

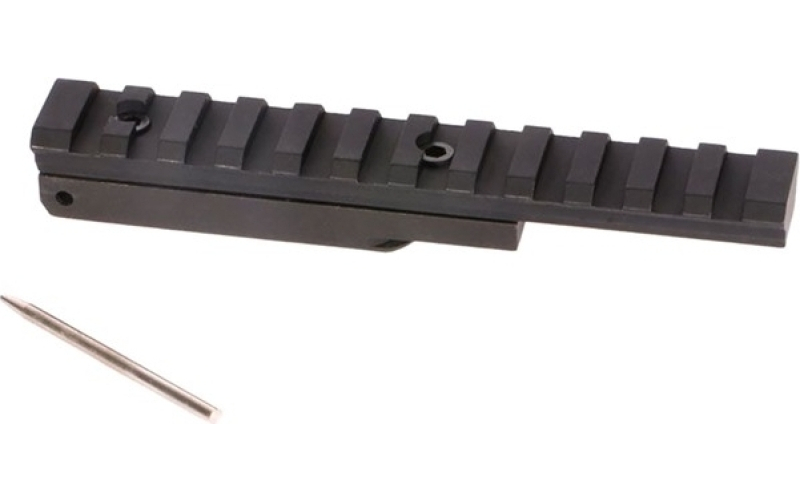

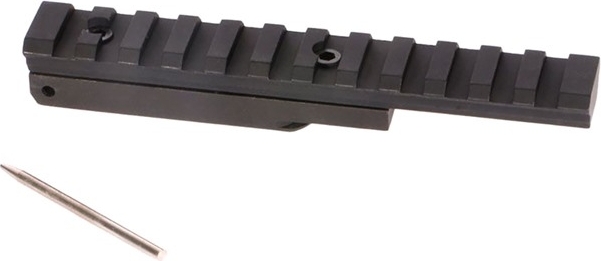

EGW's Mosin Nagant mount allows you to remove the rear leaf sight and install the base without the need to unsolder anything. It is one of the most stable bases on the market and uses the rear sight housing so there are no major modifications to your rifle like with some other brands.

Installation:


Remove rear leaf sight from the housing

Keep the original pin as you will need this to install the base

Insert the tabbed side of our steel base in to the rear of the rear sight

Check for fitment on the front of the steel base

The corners and front may need to be filed down to achieve the optimal fit

Once the base sits completely in the rear housing insert the retaining pin from the original sight

Adjust the set screw to take up any play in the rail

Screw the top aluminum mount to the steel base

This mount can be put on in either direction


EGW recommends measuring the hole spacing in your receiver to confirm it matches with the dimensions they have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. EGW one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

EGW machines these in thier shop using one of their machining centers. After machining, the mounts are tumbled, sand blasted, and Type III anodized for long lasting durability.

Installation: EGW recommends 20 inch lbs of torque and a drip of blue loctite (loctite is sold separately).
